Introduction

Global cellular products are increasingly constrained by the RF front-end rather than the modem. Supporting multiple geographic regions means accommodating more low-band FDD combinations, while compact products such as wearables and IoT devices do not have the available PCB area for additional banks of filters, switches and circuitry. The result is that OEMs are shipping geographical product variants, causing supply chain complexity and waste. Low-band frequencies continue to form the backbone of cellular communications, offering reliable connectivity in both rural areas and cities alike. A hybrid architecture addresses the band coverage versus available PCB space selectively: retain proven mid/high-band and TDD bands, while adopting a reconfigurable low-band RF front-end.

FFM51010 enables this approach. It integrates a digitally tunable duplexer and a self-interference cancellation network to support all 4G/5G low bands. The front-end module includes a multi-mode PA, LNA and antenna-port bi-directional coupler, with a total footprint of 6.0 × 4.5 × 0.75 mm. This hardware platform supports all low bands from 612 to 960 MHz, removing the need for any low-band SAW duplexers.

Summary

Read this white paper to discover how a hybrid RF front-end architecture addresses the band coverage versus available PCB space selectively: adopting Forefront RF’s FFM51010 reconfigurable low-band RF front-end whilst retaining existing mid/high and TDD bands.

The paper brings a practical path towards adoption with including system-level block diagrams and a discussion of the benefits of this approach.

A practical evolution of existing architecture

The key objective of FFM51010 is to increase product capability and global coverage while minimizing development risk. Additional benefits include impedance adaptability. Rather than introducing a completely new RF architecture, the hybrid approach builds on the existing user equipment (UE) platform. Proven MB/HB signal paths, control schemes, and performance characteristics are retained, while selected low-band functions are consolidated into a more flexible implementation.

This strategy offers several advantages:

  • Greater coverage within limited footprint
  • No regional SKU’s
  • Easier supply chain
  • Fast global deployment
  • Fewer product certifications
  • Reconfigurable functionality

Why Low Band First?

Low band is where regional fragmentation is most visible

Low-band frequencies — between 600 MHz to 1 GHz — are the backbone of mobile coverage. They travel further, penetrate buildings better, and provide reliable on-the-go connectivity in cities and rural areas alike and are critical for smartwatches and connected products in IoT. Low-band support presents the most significant implementation challenge in global FDD (Frequency Division Duplexing) products as Figure 1 highlights.

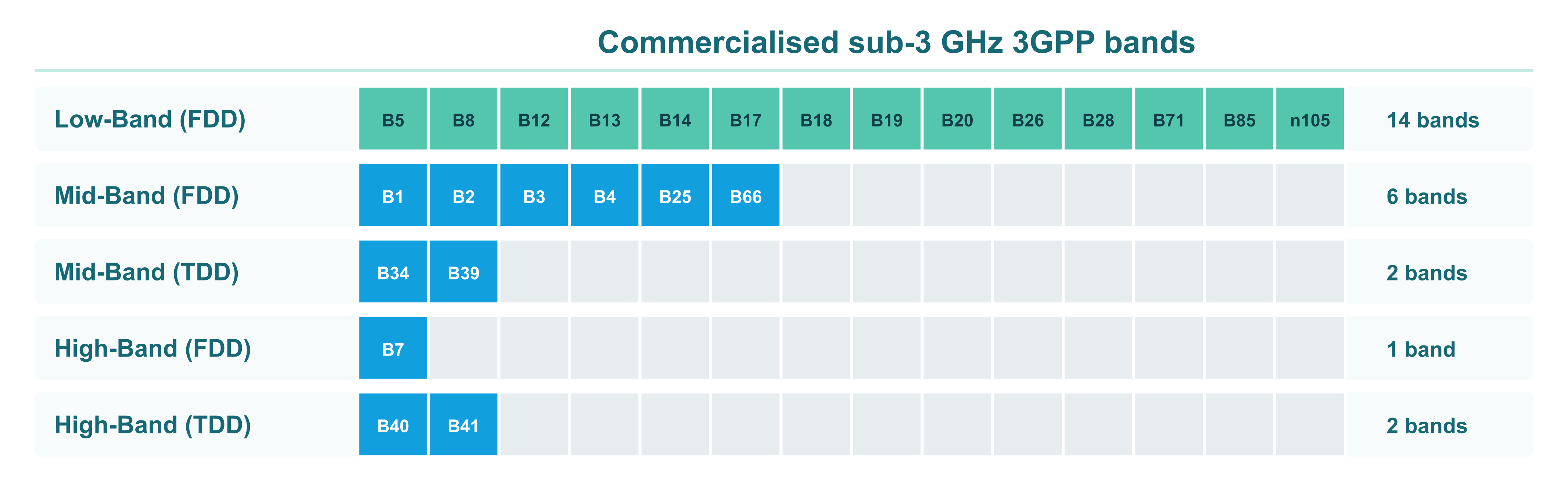

Figure 1: Low-bands FDD bands dominate the sub-3 GHz cellular frequencies

Different regions require unique combinations of low-band frequencies, frequently resulting in numerous dedicated RF paths and additional filtering resources as shown in Figure 2.  As a result, low-band implementations typically consume a disproportionate amount of PCB area and design effort compared with MB/HB or TDD solutions.

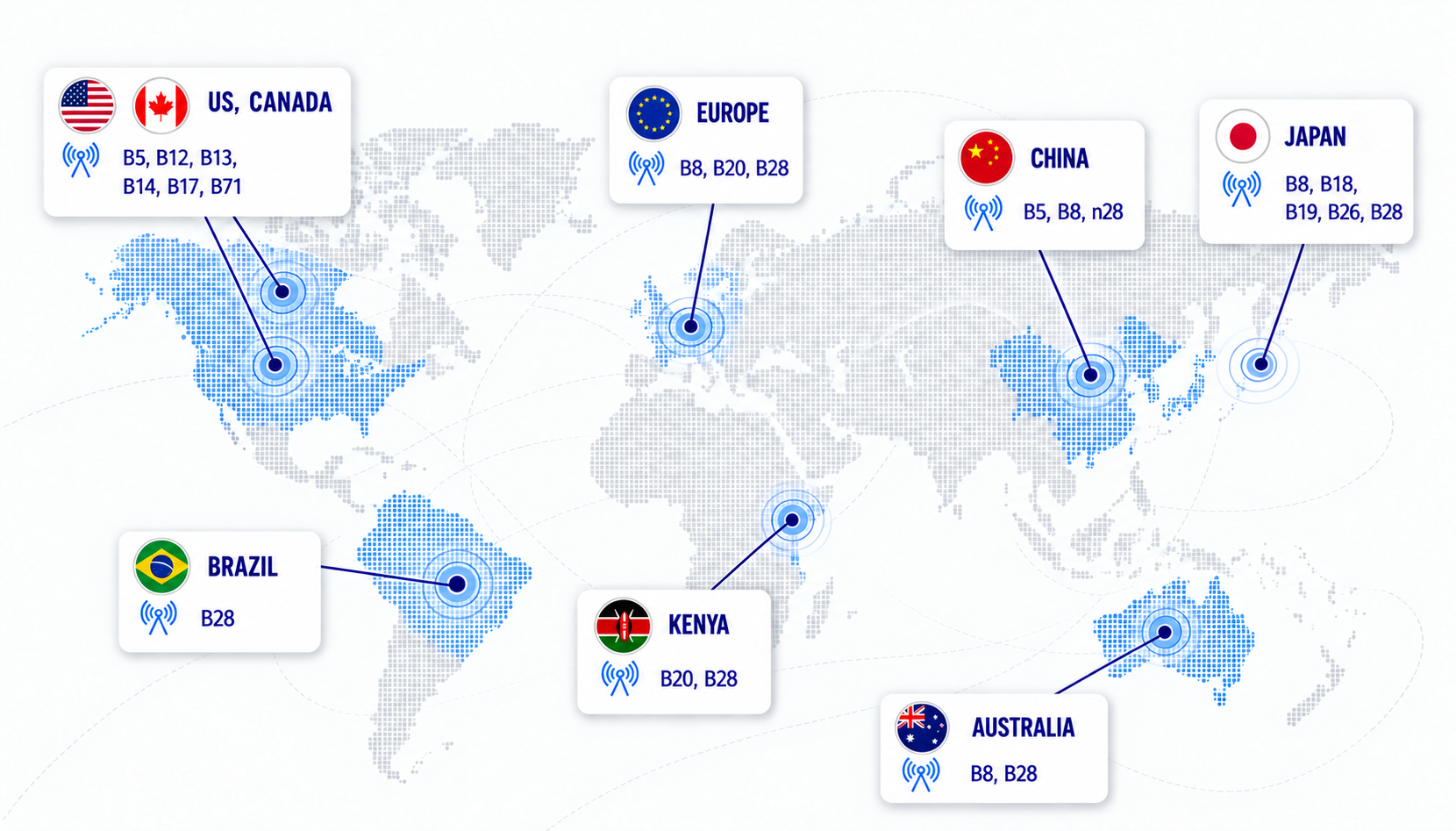

Figure 2: Global Low-band deployments overview

For product design strategy, the outcome is practical

The hybrid concept is therefore most impactful when applying a tunable or reconfigurable element to the low-band coverage. By making the low-band functionality reconfigurable, a single hardware platform can address a wider range of deployment scenarios without requiring extensive duplication of RF resources. This enables manufacturers to minimize product variants while maintaining support for key regional requirements.

Product-level benefits

Here are five important benefits of the tunable duplexer:

1.     More capability per unit area: qualified low-band coverage increases without adding an additional duplexer for every band.

2.     Greater portfolio reuse: the same low-band platform can support multiple regions and models.

3.     A contained migration path: OEMs can evaluate adopting a tunable low-band module without redesigning the complete RFFE.

4.     Lower adoption risk: the mid-band and high-band bands can reuse the fixed SAW/BAW technology which mitigates for product design risks.

5.     Antenna Impedance Adaptivity: ForetuneTM adjusts to changes in the antenna impedance caused by hand position, body proximity or the surrounding environment, negating the need for any antenna tuning hardware.

Hybrid Reference Block Diagram

Figure 3 below shows the block diagram of a hybrid front-end covering 23 bands. The hybrid front-end separates the RF implementation into two complementary domains.

  • FFM51010 handles all low-band Tx/Rx operations.
  • Discrete PAs, RF switches and SAW/BAW filters or duplexers handle the mid/high-band paths.

A common multi-throw RF switch selects the active antenna-side path.

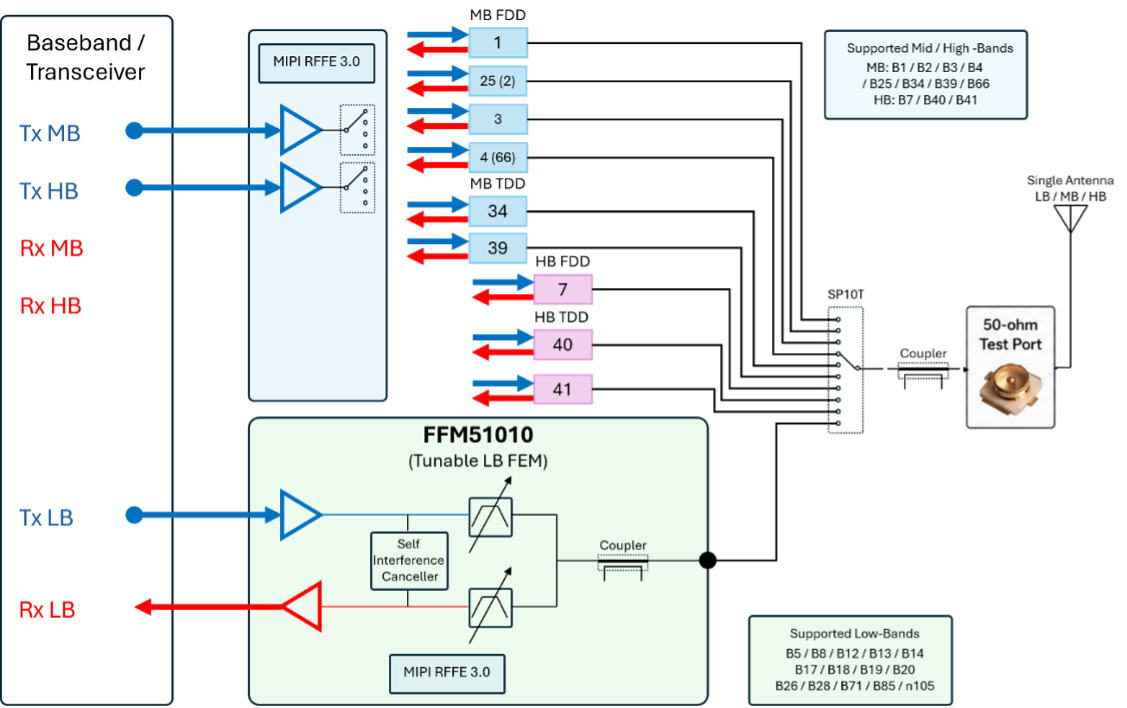

Figure 3: Hybrid RFFE Design Block Diagram in a UE (User Equipment)

Functional allocation

Function Implementation Reference Allocation
Low-band Tx FFM51010 Tx amplification and tunable Tx-path operation
Low-band Rx FFM51010 Rx filtering and gain
Mid/high-band FDD Tx/Rx · Discrete PAs
· RF switches
· SAW/BAW duplexers
B1, B3, B25/B2, B66/B4 and B7
TDD Tx/Rx · Discrete PAs
· RF switches
· SAW/BAW filters
B34, B39, B40 and B41/B38
Antenna connection Common multi-throw RF switch Selects the active FFM51010 or discrete path
Digital control MIPI RFFE and device-specific control MIPI RFFE 3.0 for FFM51010;
MIPI/GPIO as required elsewhere

PCB Footprint Benefit - Discrete and Hybrid Architecture Comparison

Conventional low-band scaling is additive

Each FDD band requirement introduces one fixed duplexer and associated routing. The hybrid approach changes that scaling model. FFM51010 replaces multiple band functions with one tunable front-end module, so the same PCB area can support a wider band portfolio as shown in Figure 4 below.

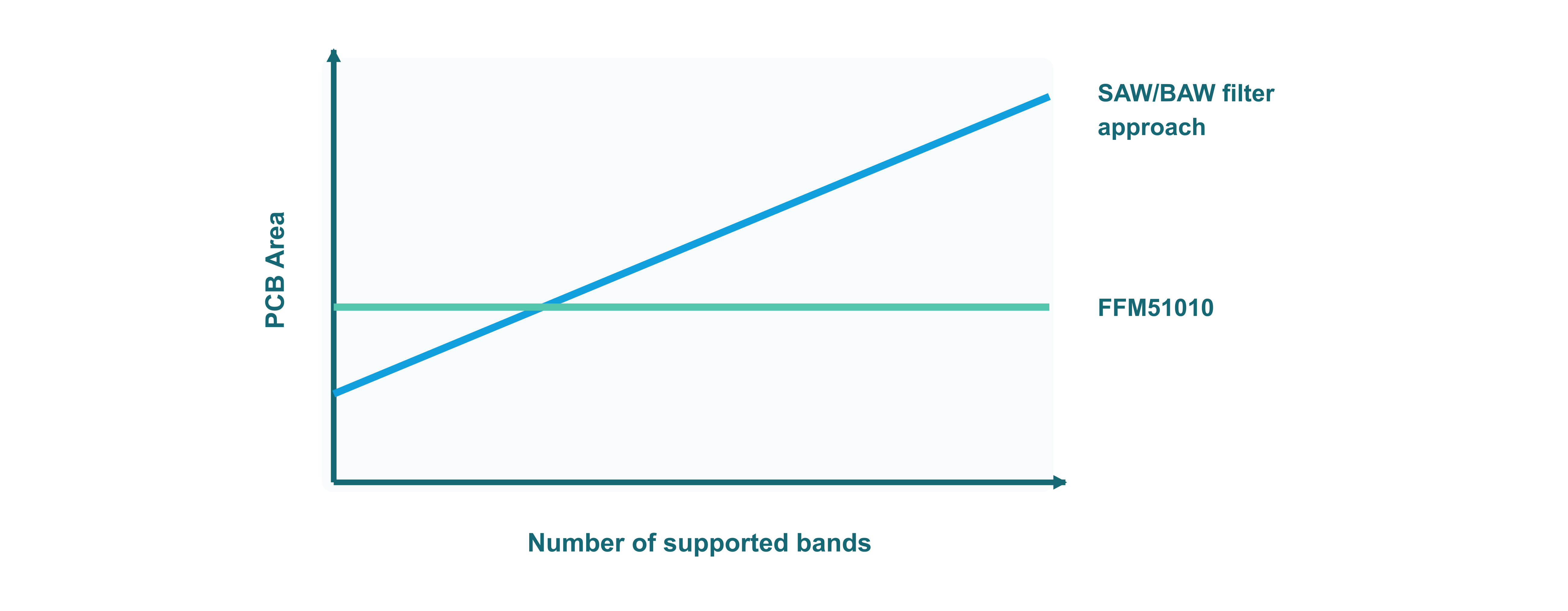

Figure 4: FFM5101 allows for greater band coverage without increasing PCB footprint

The meaningful comparison is capability per mm²

When evaluating a target product design, it is worth comparing the complete low-band RF area—including fixed duplexers, switches, couplers and matching network required by the reference design—against the FFM51010 implementation, and then normalise by the number of supported bands. This highlights the architectural and space benefits more clearly than comparing package size alone.

Benchmark: Smaller footprint by FFM51010 hybrid architecture

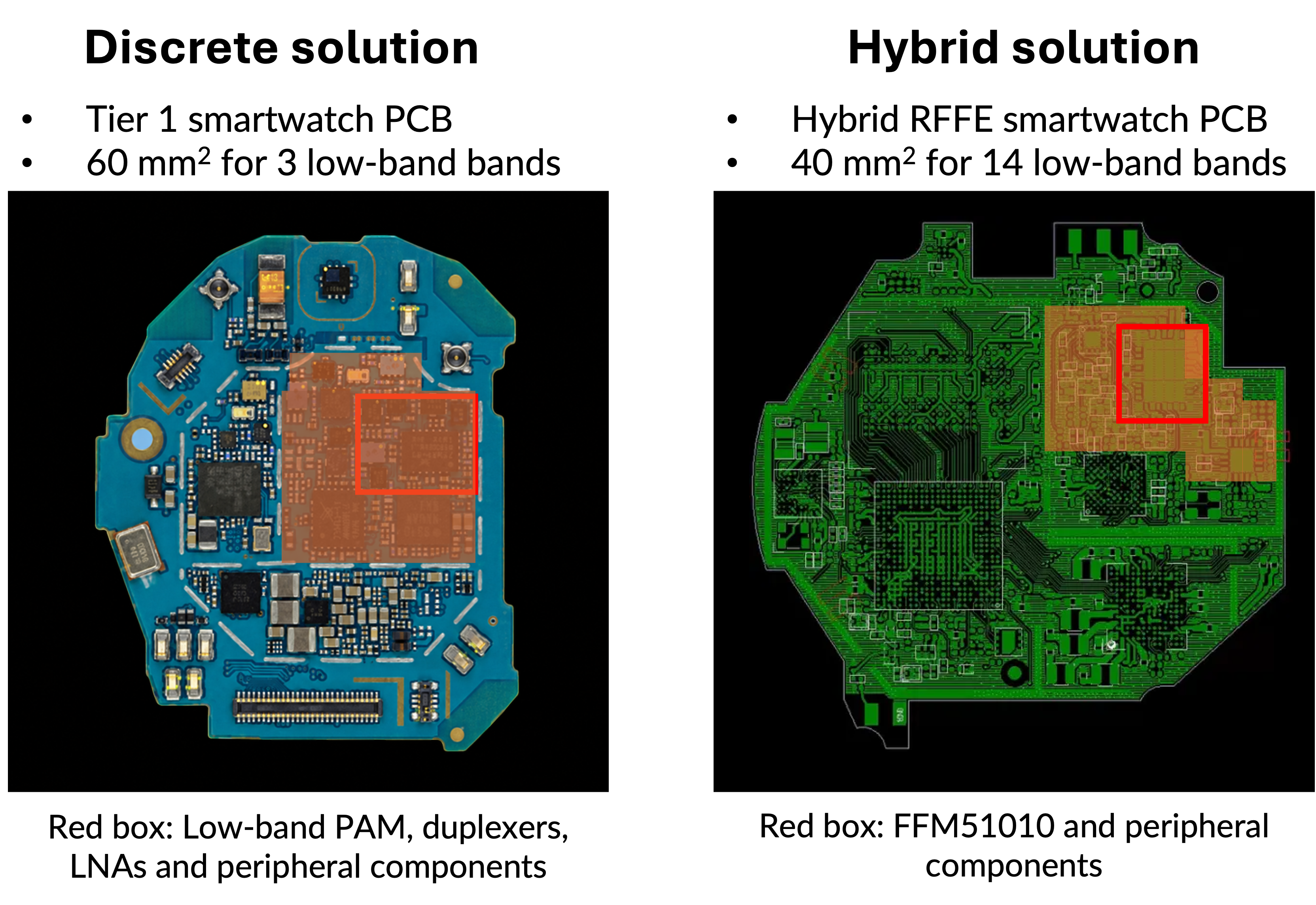

Figure 5 shows the comparison between two reference smartwatch PCBs. The orange areas are the RF front-ends. The red boxes highlight the low-band RFFE implementation. The hybrid architecture introduces configurable elements that allow multiple low-band requirements to share common RF resources. Importantly, the overall architecture preserves proven MB/HB functions and focuses innovation on areas that provide the greatest return in footprint and flexibility. The low-band area of 40mm2 comprises 27mm2 module area plus supporting peripheral components.

Figure 5: The hybrid solution offers more band support in a smaller footprint

The table below summarises the footprint benchmark. It shows that not only is the low band footprint smaller, the number of bands supported is also significantly increased by adopting the FFM51010 hybrid architecture.

Benchmark Conventional Architecture discrete RFFE Hybrid Architecture FFM51010 + discrete mid/high band
Reference footprint / Supported Bands 60 mm² / 3 bands 40 mm² / 14 bands
Normalized footprint 20 mm² / band 2.9 mm² / band

Implementation Approach

The hybrid architecture is intended to fit into a conventional cellular-watch development flow. The main change is the low-band partition; the mid/high-band chain remains based on familiar SAW or BAW filter components.

Step Activity OEM action
1 Define the target band plan Confirm regional coverage, operator requirements and whether the programme needs a common global hardware platform
2 Partition the RF paths Assign qualified low-band Tx/Rx paths to FFM51010 and retain the selected discrete mid/high-band paths
3 Select the antenna RF switch Choose the size of the multi-throw switch for the required paths, insertion loss, isolation, linearity and control interface
4 Integrate control and calibration Implement MIPI RFFE control for FFM51010 and the required MIPI/GPIO, NVRAM and factory calibration for the remaining devices
5 Validate the complete platform Verify conducted RF, OTA, current consumption, thermal behaviour and production variation on the final smartwatch or IoT products mechanics.

Reference band allocation

Domain Reference Bands Implementation Principle
Low band B5, B8, B12, B13, B14, B17, B18, B19, B20, B26, B28, B71, B85 and n105 FFM51010, subject to band and platform qualification
Mid/high-band FDD B1, B3, B25/B2, B66/B4 and B7 Discrete PA, switch and SAW/BAW duplexer paths
TDD B34, B39, B40 and B41/B38 Discrete PA, switch and SAW/BAW filter paths

Conclusion

FFM51010 demonstrates a practical path toward broader RF front-end capability through a low-risk hybrid architecture. Low-band implementation provides the ideal starting point because it represents the largest source of regional complexity and PCB area consumption. By introducing reconfigurable low-band functionality while retaining proven MB/HB architecture, the solution delivers measurable band coverage per footprint and improved implementation efficiency. The hybrid design architecture enhances product flexibility as it can be deployed to all global markets supporting all frequency bands below 3 GHz in a compact assembly.

Most importantly, the hybrid approach creates a scalable foundation for future capability expansion. It enables today's products to support a wider range of deployment requirements while establishing a framework that can be extended to additional bands and configurations in future generations.
