Streamlining RF front-end architectures with adaptive passive cancellation technology

The evolution of wireless communications has been characterised by progressively higher levels of programmability. Digital signal processing, software-defined radios and adaptive antenna systems have transformed much of the radio into configurable hardware platforms capable of supporting multiple communication standards and operating modes. The RF front-end, however, remains one of the few subsystems whose functionality is still determined primarily by fixed passive hardware.

For more than three decades, increasing RF capability has been achieved by adding dedicated filters, duplexers and switching networks for every new frequency band. While this approach has delivered exceptional RF performance, it has also resulted in steadily increasing hardware complexity, limiting scalability, increasing insertion loss and reducing opportunities for hardware reuse.

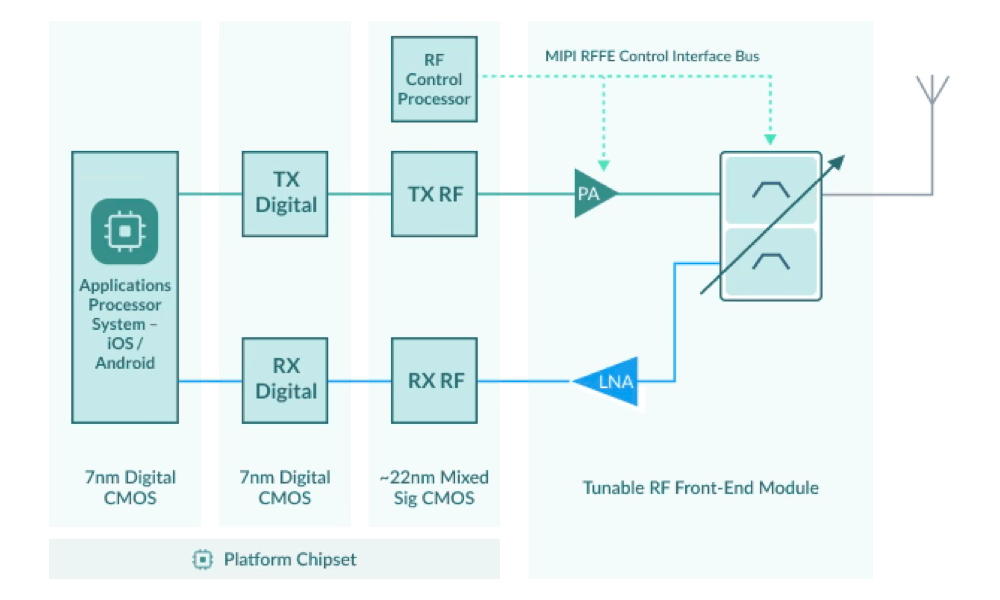

The next stage in RF front-end evolution requires a transition from component-centric design towards reconfigurable RF architectures. This principle lies at the heart of Forefront RF’s proprietary technology (ForetuneTM) which leverages Adaptive Passive Cancellation (APC) to enable this reconfigurability. APC is not just an interference suppression technique; it is also an architectural capability that decouples transmitter-to-receiver isolation from passive duplex filter rejection. This technique fundamentally changes the RF system design space, allowing isolation to be distributed across filtering, impedance matching, receiver performance and adaptive balancing.

Using the N-Plexer architecture as an engineering example, Ronald Wilting, CEO at Forefront RF explains how this approach enables increasingly reconfigurable RF front-ends and provides a practical roadmap towards universal RF hardware.

Why today’s RF front-end architectures are difficult to scale

Today’s RF front-ends depend on highly specialised passive components with electrical characteristics that are fixed once manufactured. Duplexers, acoustic filters, switches and matching networks provide the low insertion loss, high linearity and frequency selectivity required by contemporary wireless systems, but they are generally optimised for specific frequency bands and operating conditions.

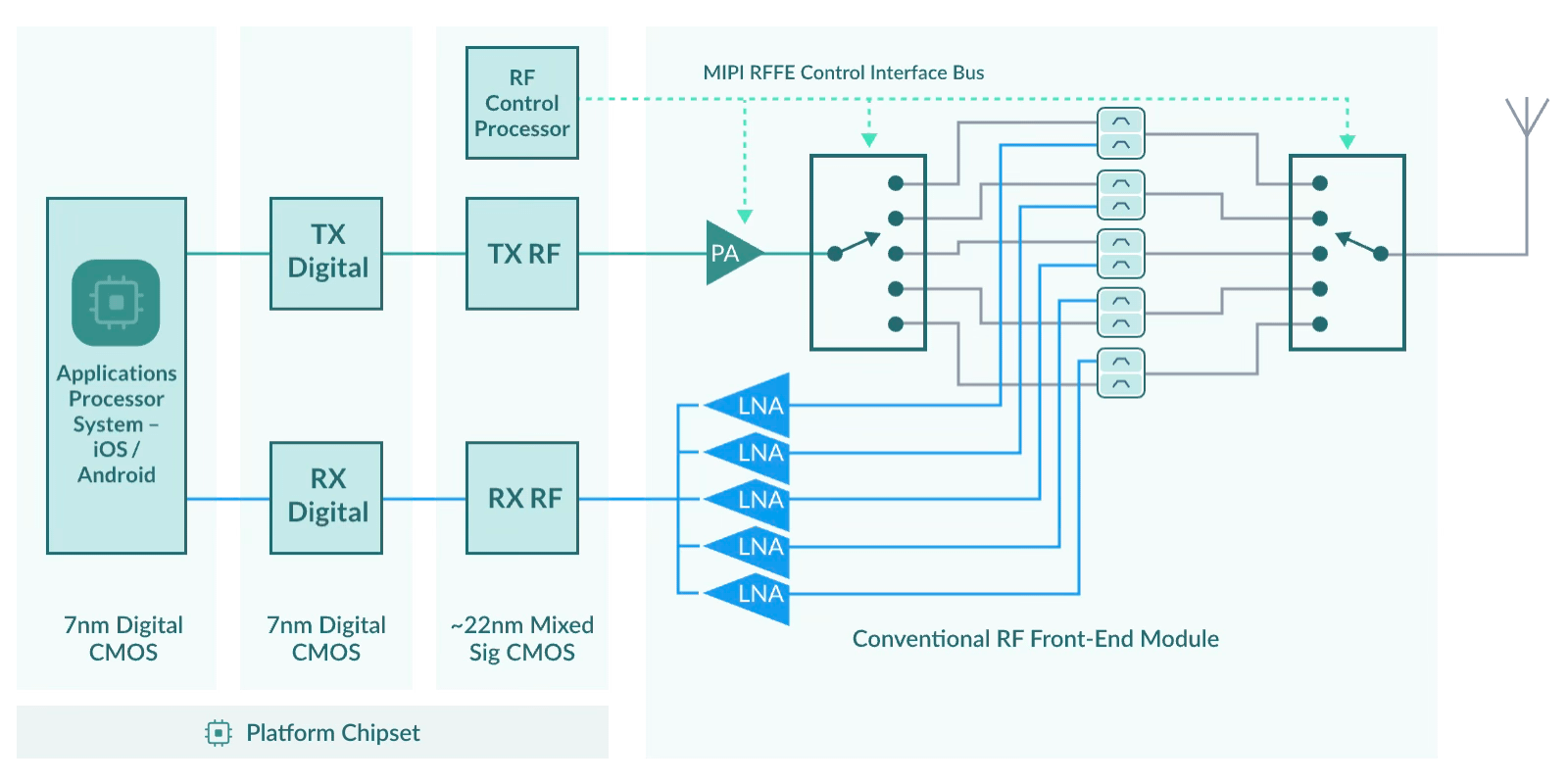

Modern devices must support a growing array of cellular bands while simultaneously meeting demanding requirements for transmitter efficiency, receiver sensitivity and electromagnetic coexistence. To date this capability has largely been achieved by increasing hardware complexity. Additional spectrum allocations require additional duplexers and filters. Carrier Aggregation (CA) introduces further switching and routing complexity, while regional spectrum allocations create multiple hardware variants.

Emerging applications such as globally deployable IoT devices and satellite communications demand wider frequency coverage, greater hardware reuse and increasing adaptability. Addressing these requirements by continuing to add dedicated RF hardware is likely to increase cost, physical footprint, insertion loss and design complexity, while reducing architectural flexibility.

Looking beyond 5G, the dominant challenge is therefore no longer simply supporting additional spectrum, but to do so using hardware that can be efficiently reused across multiple operating environments.

Acoustic duplexers have been central to this evolution. Their excellent insertion loss, stop-band rejection and transmitter-to-receiver isolation have made them the preferred solution for Frequency Division Duplex (FDD) systems. Their limitation, however, is that they are inherently frequency specific. Supporting additional operating bands generally requires additional duplexers, together with associated switches, matching networks and RF routing.

Conventional RF front-ends scale by replicating band-specific hardware, whereas reconfigurable architectures maximise the use of common RF resources. The objective is not simply to reduce component count, but to enable the same RF hardware to be reused across multiple bands and operating conditions.

Achieving this transition requires a fundamental change in RF system design. In conventional front-ends, transmitter-to-receiver isolation is largely determined by the passive duplex filter. Reconfigurable architectures instead seek to distribute this function across the complete RF system, allowing isolation to be shared between passive filtering, impedance matching, receiver robustness and adaptive balancing.

How adaptive passive cancellation changes RF system design

In conventional FDD systems, the duplexer establishes the transmitter-to-receiver (Tx-Rx) isolation available to the radio. This isolation directly influences receiver linearity, blocker performance and filter rejection requirements. As a result, much of the RF front-end is designed around the practical limits of passive duplex filter technology.

Adaptive Passive Cancellation changes this relationship. Instead of requiring the duplexer to provide the complete Tx-Rx isolation, APC suppresses the residual transmitter leakage that remains after passive filtering. The required system isolation is therefore achieved through the combined behaviour of the passive network and the balancing network rather than by filter rejection alone.

Because passive filtering is no longer solely responsible for Tx-Rx isolation, there is greater flexibility in how RF performance is allocated across the front-end. Reduced filter rejection may be traded for wider tuning range. Improved receiver linearity may reduce isolation requirements. Better antenna matching reduces the burden on the balancing network.

Rather than optimising individual components sequentially, reconfigurable architectures begin with the required system performance and distribute the corresponding requirements across filtering, impedance matching, receiver performance and APC.

The significance of APC therefore extends beyond self-interference suppression, enabling a fundamentally different approach to RF system design.

The N-Plexer architecture

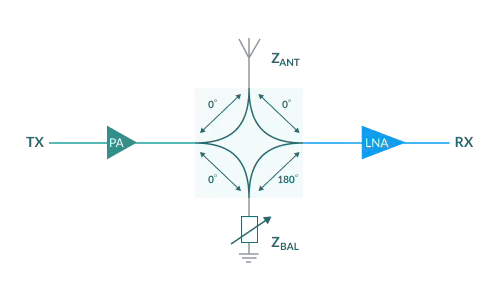

One implementation of this design philosophy is the N-Plexer architecture. At the core of the N-Plexer is a passive hybrid network that combines the transmit, receive, antenna and balance ports into a reconfigurable four-port microwave structure. Unlike a conventional duplexer, the N-Plexer introduces a fourth balance port connected to a tunable passive balancing network.

This additional level of freedom allows the RF response of the complete network to be adjusted electronically while retaining the efficiency and linearity of passive microwave structures.

Instead of treating the balancing network as an independent cancellation circuit, the N-Plexer considers the transmit path, receive path, balancing network and antenna as a single reconfigurable microwave network. The residual self-interference therefore depends on the interaction of all four elements rather than on the duplex filter alone.

This is particularly important because the self-interference path is influenced by antenna impedance. Changes in antenna loading modify the leakage transfer function, meaning that optimum performance cannot generally be achieved by adapting the balancing network alone. Instead, filtering, impedance matching and APC are configured together to achieve the required system response.

Unlike conventional active cancellation systems, the digital controller does not generate an RF cancellation waveform. Instead, it configures the passive microwave network by selecting the optimum tuning state for the operating band and antenna condition.

By introducing electronically configurable passive networks into the RF front-end, isolation is no longer treated as a fixed property of the duplex filter but as a configurable system parameter. This allows RF performance to be redistributed across the front-end, increasing tuning range and hardware reuse while preserving the low loss and high linearity associated with passive microwave implementations.

Practical implementation and experimental validation

Practical implementation requires the passive microwave network to maintain accurate broadband amplitude and phase characteristics while preserving the linearity expected of modern RF front-ends. Commercial cellular systems operate over wide modulation bandwidths, high transmit power levels and dynamic antenna environments. APC must therefore be evaluated using complete system metrics, including insertion loss, receiver sensitivity, linearity and robustness to antenna mismatch, rather than cancellation depth alone.

A further requirement is calibration. The optimum tuning state depends on operating frequency, antenna impedance and manufacturing variation. In practice, calibration is performed when the operating band or antenna environment changes, allowing the passive network to be configured for optimum performance without the complexity of continuous real-time adaptation. This digitally assisted approach also compensates for normal manufacturing variation, improving production yield while maintaining consistent RF performance.

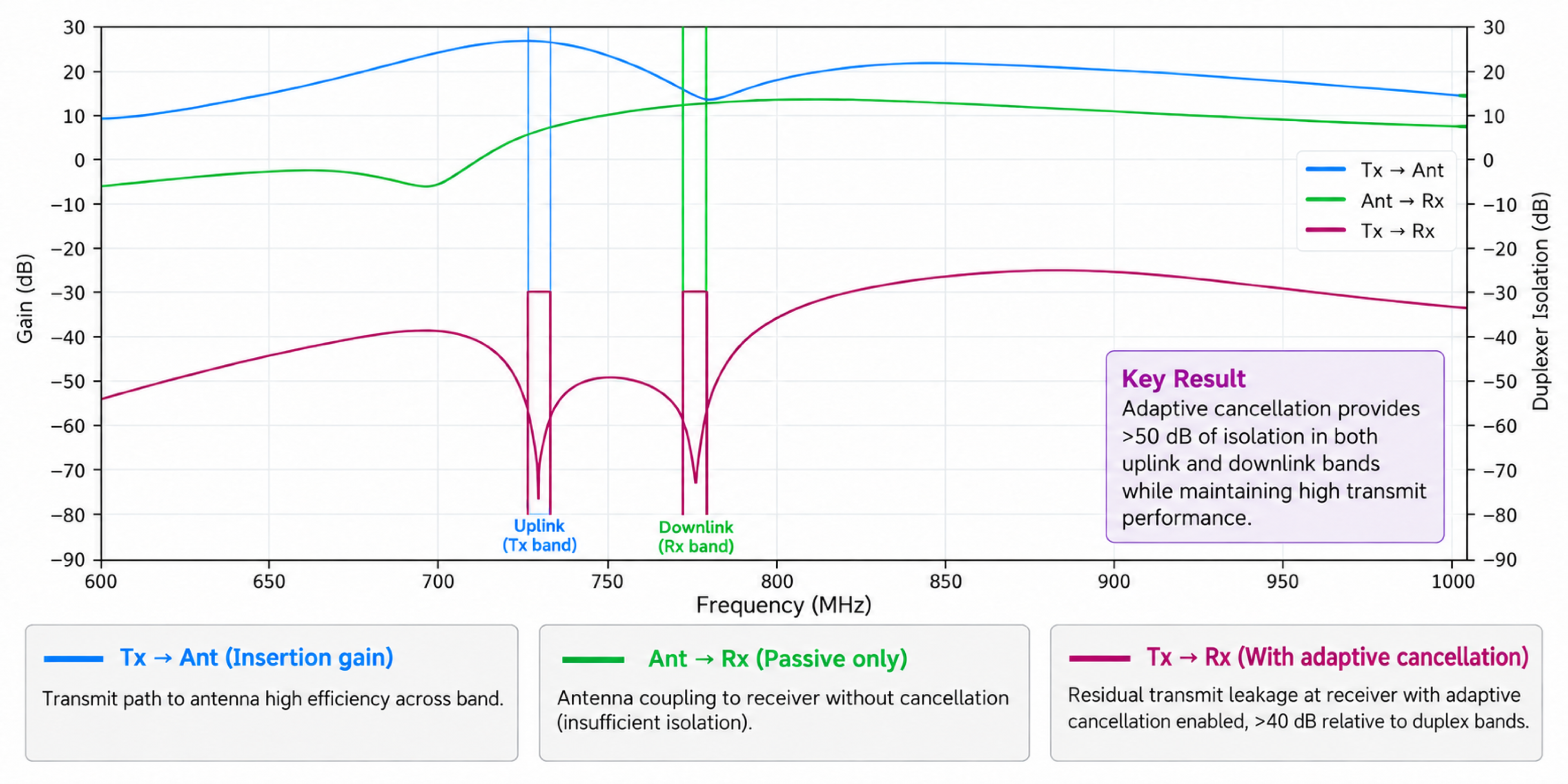

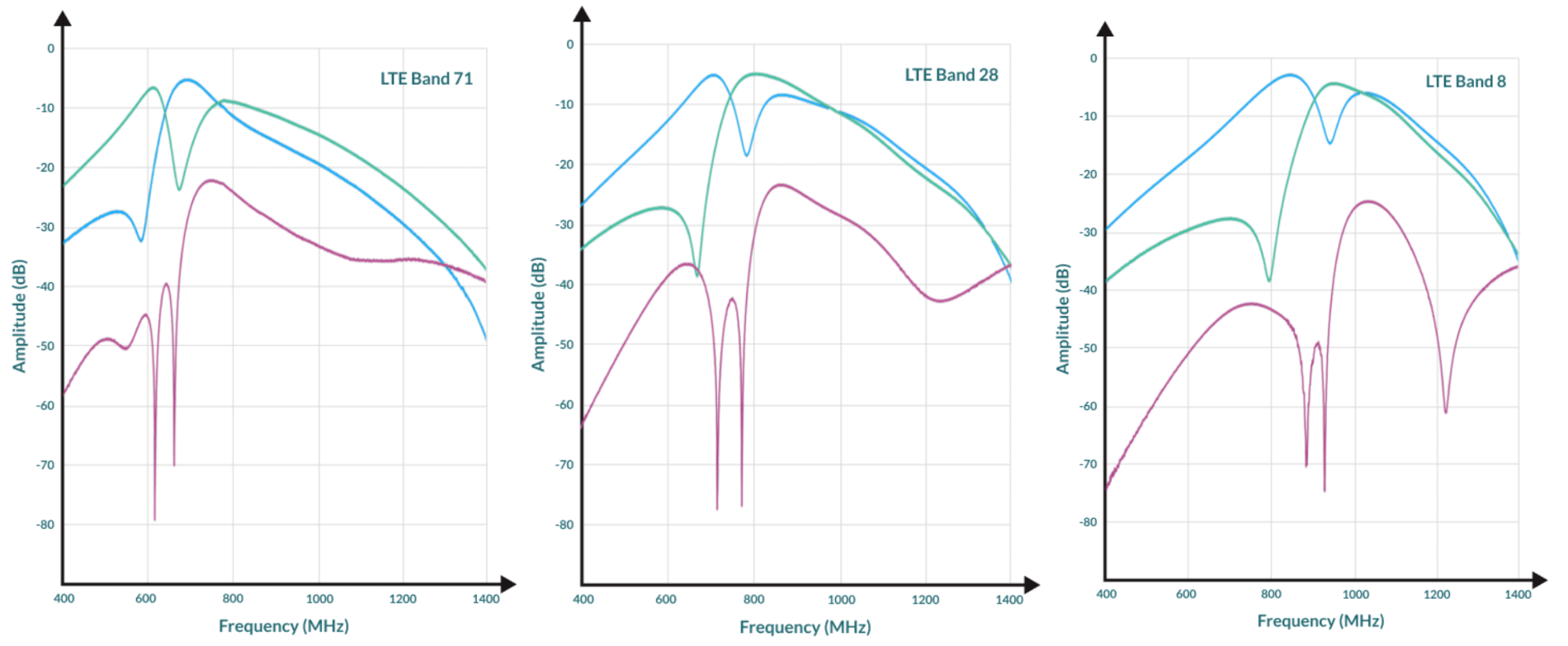

The architecture has been demonstrated using a reconfigurable low-band RF front-end covering the 600–1000 MHz cellular spectrum. Measured results demonstrate Tx-Rx isolation exceeding 50 dB while maintaining low insertion loss and continuous frequency reconfiguration across the low-band cellular spectrum.

Unlike conventional front-ends, where each operating band requires a dedicated duplexer, the same passive hardware can be electronically configured across multiple cellular bands, illustrating the architectural advantage of hardware reuse.

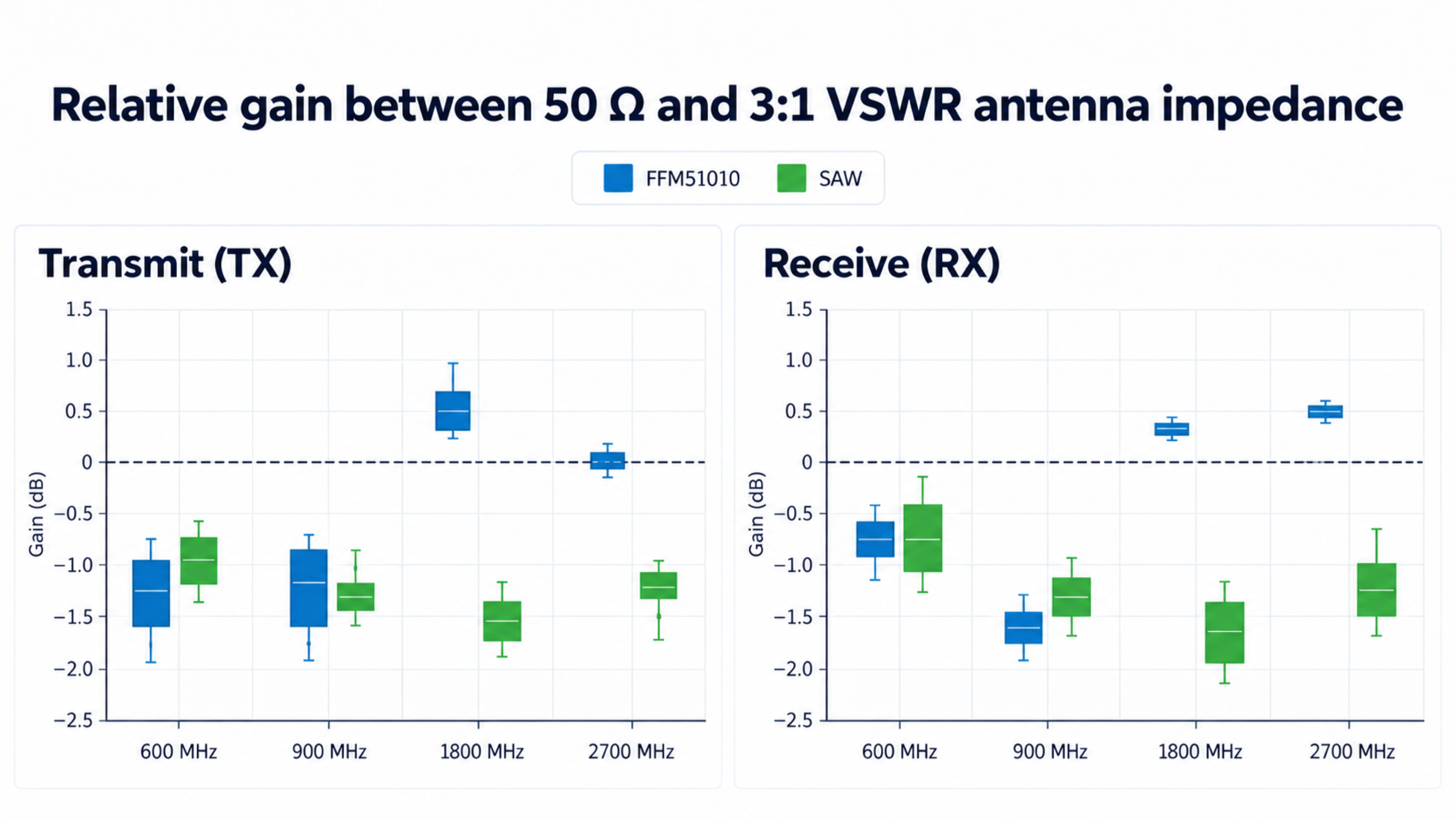

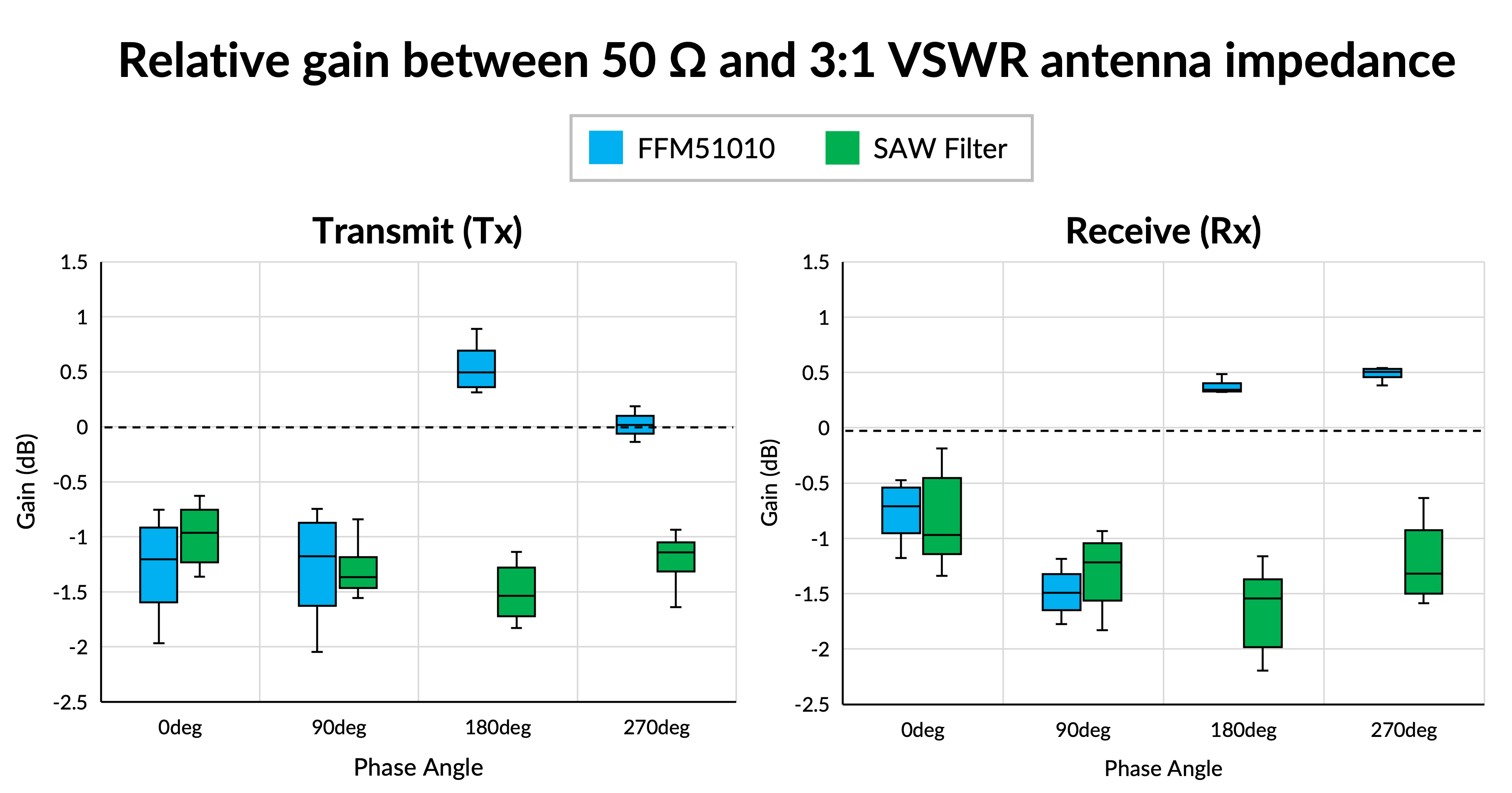

Operation under varying antenna impedance conditions further demonstrates that changes in antenna loading can be compensated through network reconfiguration.

Because the balancing network forms part of the complete passive microwave system, changes in antenna loading can be compensated through network reconfiguration, recovering performance that would otherwise be lost through antenna detuning.

These measurements confirm that the N-Plexer architecture is capable of combining tunable filtering, adaptive balancing and impedance optimisation within a practical passive RF implementation.

Towards universal RF front ends

APC represents a fundamental architectural opportunity for RF front-end design. By decoupling transmitter-to-receiver isolation from passive duplex filter rejection, APC enables greater tuning flexibility, increased hardware reuse and a more scalable RF architecture. The N-Plexer demonstrates one practical implementation of this concept, showing how configurable passive architectures can address challenges that are becoming increasingly difficult for fixed duplexer technologies alone.

This principle underpins Forefront RF’s Foretune™ technology, which applies a configurable approach to RF front-end design to enable greater flexibility and hardware reuse across multiple bands and operating conditions. Universal RF front-ends will not emerge solely from better passive components, but from architectures that redistribute RF functionality across configurable passive microwave networks, allowing system performance to be synthesised rather than predetermined by fixed hardware.
